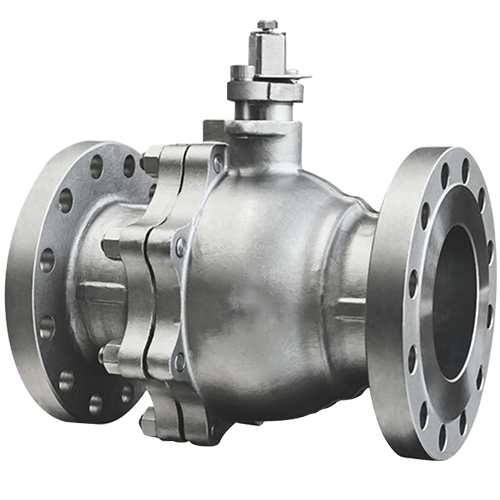

PRODUCT DETAILS |
SIZES |
1/4" TO 12" |
PRESSURE CLASS RATINGS |
ASME #125 TO #4500 |
END CONNECTION |
SCREWED, SOCKET WELD, FLANGED, BUTT-WELD |
CONSTRUCTION TYPES |
SINGLE PIECE, TWO PIECE & THREE PIECE CONSTRUCTIONS |
PORT OPTIONS |
FULL PORT & REGULAR PORT |
SALIENT FEATURES |
FIRE-SAFE DESIGN, CRYOGENIC CONFIGURATION, STEM EXTENSION, CAVITY PRESSURE RELIEF MECHANISM,
ANTISTATIC FEATURE, HIGH INTEGRITY STEM SEALING, BLOWOUT-PROOF STEM, PRIMARY METAL AND SECONDARY
SOFT SEAT DESIGN, LOCKING ARRANGEMENTS |
OPERATOR / ACTUATOR |
LEVER, GEAR, ACTUATOR (PNEUMATIC, HYDRAULIC, ELECTRO-HYDRAULIC AND ELECTRIC MOTORISED) |
MATERIAL OF CONSTRUCTION |
BODY / END CONNECTOR |
CARBON & LOW CARBON STEEL, STAINLESS STEEL, NICKEL ALLOYS, ALUMINIUM BRONZE,
DUPLEX STAINLESS STEEL, EXOTIC MATERIALS |
TRIM |
STAINLESS STEEL, NICKEL ALLOYS, DUPLEX STAINLESS STEEL, EXOTIC MATERIALS |
SEAT |
PTFE/ RPTFE/ SPECIAL FILLED PTFE/ PEEK/ DEVLON®/ SS316 + ST |
STEM PACKING & SEALS |
PTFE/ RPTFE/ SPECIAL FILLED PTFE/GRAPHITE/GRAPHOIL |
GASKETS |
PTFE/ RPTFE/ SPECIAL FILLED PTFE/GRAPHITE/GRAPHOIL/SPIRAL WOUNDED |
STEM BEARING |
RPTFE/ SPECIAL FILLED PTFE/GRAPHITE |
FASTENERS |
ASTM A193 GR.B7/A194 GR.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H ETC., |
