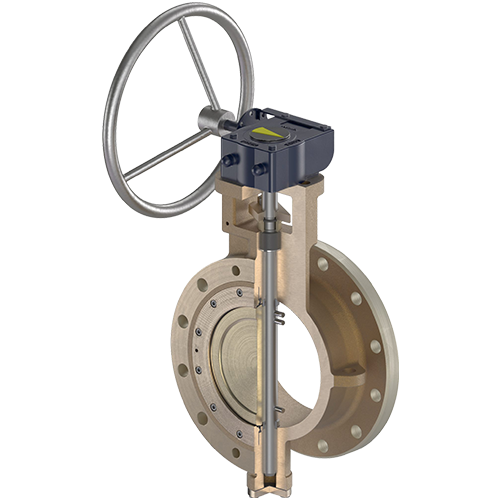

DOUBLE-OFFSET BUTTERFLY VALVE

...
...
PRODUCT DETAILS
Sizes 2" to 60"
Pressure Class Ratings Asme #150, #300, PN20, PN25, PN40
End Connection Wafer, Lugged, Double Flanged
Construction Types Double Offset Disc
Salient Features One-piece blowout-proof Stem, Reliable Drive Operation, High Performance, Low Torque, Flexible Soft & Metal Sealing, Stem Extension, Cryogenic, Locking Arrangements etc.
Operator/Actuator Handwheel, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)
STANDARDS SPECIFICATIONS
Design & Manufacture EN 593 (BS 5155), API 609, ASME B16.34
Face To Face API 609, ISO 5752, EN 593 (BS 5155)
End Connections ASME B16.5/ B16.47 RF/FF/RTJ, ASME 16.25,EN 1092
Testing EN 12266/API 598
Fire safe testing API 607
Nace NACE MR0175/ISO 15156 and NACE MR0103/ISO17945
MATERIAL OF CONSTRUCTION
Body Carbon & Low Carbon Steel, Stainless Steel, Nickel alloys, High Temp Alloys, Duplex Stainless Steel, Exotic Materials
Disc Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials
Seat Nitrile, EPDM, Viton,PTFE/RPTFE/, Metal to Metal Seats etc.
Stem Packing & Seals PTFE/RPTFE/ Special filled PTFE/Graphite/Graphoil
Stem&Retainer Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials
Fasteners ASTM A193 Gr.B7/A194 Gr.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H etc.,

Note : For Bigger sizes please contact PR-Fect Valves
