GLOBE VALVES
A globe valve is a widely used device in fluid control systems designed for regulating the flow of liquids or gases through a pipe. It operates by using a movable disk-type element and a stationary ring seat within the valve body to allow precise flow control. Globe valves are ideal for applications requiring throttling or fine adjustments of flow. Globe valves provide excellent flow regulation and are particularly effective in situations where control precision is essential.
Globe valves are a crucial component in many systems due to their reliability and accuracy, serving as an efficient solution for controlling flow in pipelines. Commonly found in industries such as water supply, oil and gas, chemical processes, and power generation, globe valves are essential for managing both small and large volumes of fluid precisely.
PR-FECT VALVES manufactures globe valves in a wide range of sizes, materials, and pressure ratings, ensuring compatibility with diverse industrial applications and offering advanced technical features such as precision-machined components and corrosion-resistant coatings for enhanced performance and durability.
| SL. NO. | GLOBE VALVE TYPES |
| 1 | GLOBE VALVE |
| 2 | GLOBE CONTROL VALVE |
| 3 | ANGLE GLOBE VALVE |
| 4 | Y-PATTERN GLOBE VALVE |

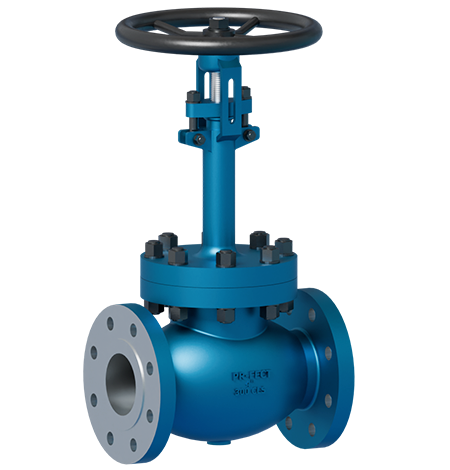

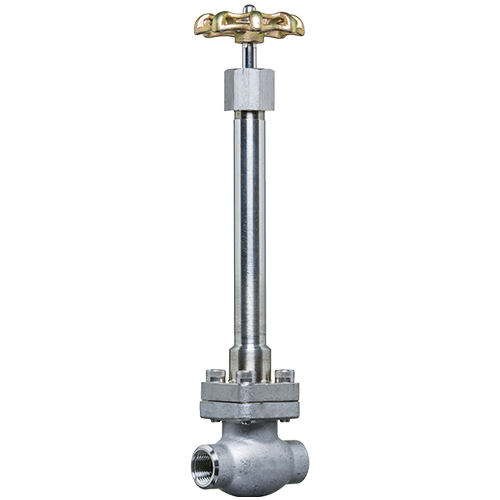

| 5 | CRYOGENIC GLOBE VALVE |
| 6 | HIGH TEMPERATURE GLOBE VALVE |

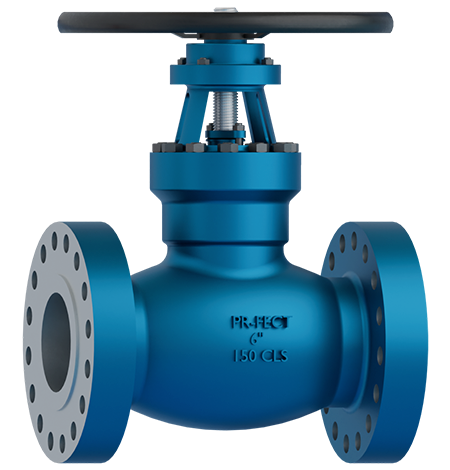

| 7 | PRESSURE SEAL GLOBE VALVE |
| 8 | BELLOWS SEAL GLOBE VALVE |
| 9 | BELLOWS SEALED GLOBE CONTROL VALVE |
| 10 | GLOBE VALVE WITH NEEDLE TIP |
| 11 | STEAM JACKETED GLOBE VALVE |
| 12 | Y-PATTERN PRESSURE SEAL GLOBE VALVE |
| 13 | Y-PATTERN BELLOW SEAL GLOBE VALVE |

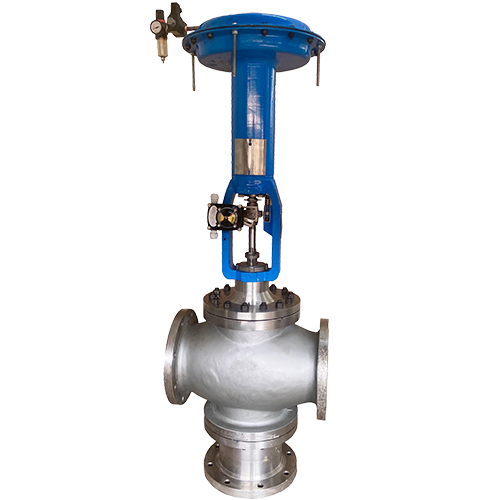

| 14 | 3-WAY GLOBE VALVE |
| 15 | STOP CHECK GLOBE VALVE |
| 16 | BRONZE GLOBE VALVE |
| 17 | FABRICATED GLOBE VALVE |
| 18 | PVC / CPVC GLOBE VALVE |
| 19 | HIGH PRESSURE GLOBE VALVE |
| 20 | SUBSEA GLOBE VALVE |
| 21 | EXTENSION SPINDLE GLOBE VALVE |
| 22 | HOOPER GATE VALVES |
| PRODUCT DETAILS | |
| Sizes | 1/4" to 250" |
| Pressure Class Ratings | ASME #150 to #4500 |
| End Connection | Screwed, Socket Weld, Flanged, Butt-Weld |
| Construction Types | O.S & Y. Rising Stem, Straight & Y - Pattern, others upon request |
| Salient Features | Pressure Seal, Bellow Seal, Fugitive Emissions, Metal Seats, Back Seating, Stem Extension, Bypass Arrangement, Locking Arrangements etc. |
| Operator / Actuator | Handwheel, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised) |
| STANDARDS SPECIFICATIONS | |
| Design & Manufacture | API 623, BS 1873, ASME B16.34 |
| Face To Face | ASME B16.10, MFG Standard |
| End Connections | ASME B16.11, ISO 7-1, BS 21 ASME B1.20.1, ASME B16.5/ B16.47 RF/FF/RTJ ASME 16.25, EN 1092 |
| Testing | API 598, ASME B16.34 |
| Fire safe testing | ISO 10497/ API 607, API 6FA |
| Nace | NACE MR0175 / ISO 15156 and NACE MR0103 / ISO17945 |
| Fugitive emission | ISO 15848-1, API 624 |
| MATERIAL OF CONSTRUCTION | |
| Body / Bonnet / Yoke | Carbon & Low Carbon Steel, Stainless Steel, Nickel alloys, High Temp Alloys, Duplex Stainless Steel, Exotic Materials |
| Trim | Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials |
| Seat | HF-Metal to Metal Seats, others upon request |
| Stem Packing & Seals | PTFE/ RPTFE/ Special filled PTFE/Graphite/Graphoil |
| Gaskets | PTFE/ RPTFE/ Special filled PTFE/Graphite/Graphoil/Spiral Wounded |
| Fasteners | ASTM A193 Gr.B7/A194 Gr.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H etc. |
Note : For Bigger sizes please contact PR-Fect Valves
