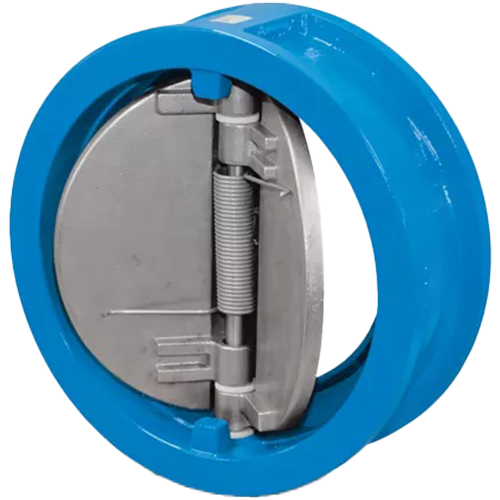

DUAL PLATE CHECK VALVE

...
...
PRODUCT DETAILS
Sizes 2" to 48"
Pressure Class Ratings Asme #150 to #2500
End Connection Wafer, Lugged, Flanged
Construction Types Retainer-less design & Retainer Design
Salient Features Integrally Moulded liner, Metal Seats, Drain connections etc.
STANDARDS SPECIFICATIONS
Design & Manufacture API 594, ASME B16.34
Face To Face API 594, MFG Standard
End Connections ASME B16.5/B16.47 RF/FF/RTJ, EN 1092
Testing API6D, API 598, ASME B16.34
Nace NACE MR0175 /ISO 15156 and NACE MR0103 /ISO17945
MATERIAL OF CONSTRUCTION
Body /Top Cover Carbon & Low Carbon Steel, Stainless Steel, Nickel alloys, High Temp Alloys, Duplex Stainless Steel, Exotic Materials
Disc Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials
Seat Soft Seats, HF-Metal to Metal Seats, others upon request
Hinge & Stopper Pin Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials
Springs Stainless Steel, Inconel

Note : For Bigger sizes please contact PR-Fect Valves
