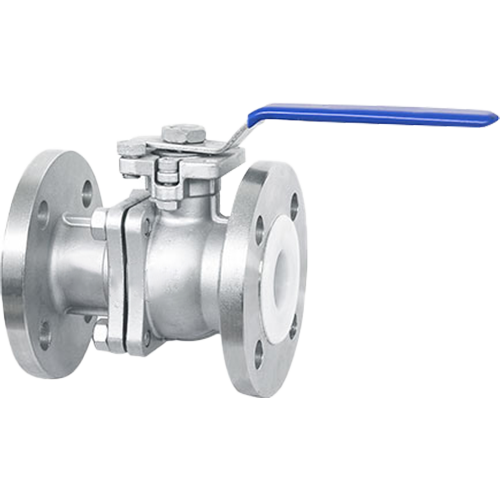

PRODUCT DETAILS | |
Sizes | 1/2" to 12 " |
Pressure Class Ratings | Asme #125 to #300 |
End Connection | Flanged |
Construction Types | Two Piece |
Port Options | Full Port & Regular Port |
Salient Features | Fully Lined, Stem Extension, High Integrity Stem Sealing, Blowout-proof stem, Soft Seat Design, Locking Arrangements |
Operator/Actuator | Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised) |
STANDARDS SPECIFICATIONS | |
Design & Manufacture | ASME B16.34 |
Face To Face | ASME B16.10, MFG Standard |
End Connections | ASME B16.5 -FF, EN 1092 |
Testing | API 6D, API 598, ASME B16.34, BS EN 12266, ISO 5208 |
Nace | NACE MR0175/ISO 15156 and NACE MR0103/ISO17945 |
Leak tightness | ISO 5208, ANSI/FCI 70-2 |
MATERIAL OF CONSTRUCTION | |
Body/End Connector | Carbon & Low Carbon Steel, Stainless Steel Other Upon Request |
Trim | Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials |
Seat | PTFE/RPTFE/Special filled PTFE |
Lining | Lined with PFA/FEP/PVDF/PTFE/PP |
Fasteners | ASTM A193 Gr.B7/A194 Gr.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H etc., |
Note : For Bigger sizes please contact PR-Fect Valves
