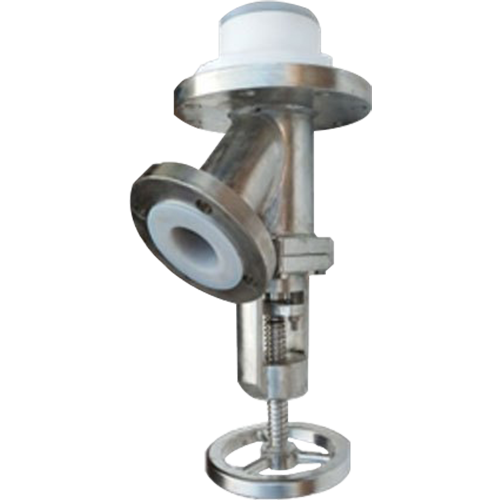

LINED FLUSH BOTTOM VALVE

...
...
PRODUCT DETAILS
Sizes 1" to 12"
Pressure Class Ratings Asme #150 to #600
End Connection Flanged
Construction Types O.S & Y. Rising Stem,Y - Pattern, Open Up,Open Down, others upon request
Salient Features Metal Seats, Back Seating, Stem Extension, Jacketing, Internal Lining, Locking Arrangements etc.
Operator/Actuator Handwheel, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)
STANDARDS SPECIFICATIONS
Design & Manufacture ASME B16.34
Face To Face MFG Standard
End Connections ASME B16.5 RF/FF, EN 1092
Testing API 598, ASME B16.34
Nace NACE MR0175/ISO 15156 and NACE MR0103/ISO17945
MATERIAL OF CONSTRUCTION
Body/Bonnet/Yoke Carbon & Low Carbon Steel, Stainless Steel
Trim Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials
Body Liner Lined with PFA/FEP/PVDF/PTFE/PP
Stem Packing & Seals PTFE/RPTFE/Special filled PTFE/Graphite/Graphoil
Gaskets PTFE/RPTFE/Special filled PTFE/Graphite/Graphoil/Spiral Wounded
Fasteners ASTM A193 Gr.B7/A194 Gr.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H etc.,

Note : For Bigger sizes please contact PR-Fect Valves
