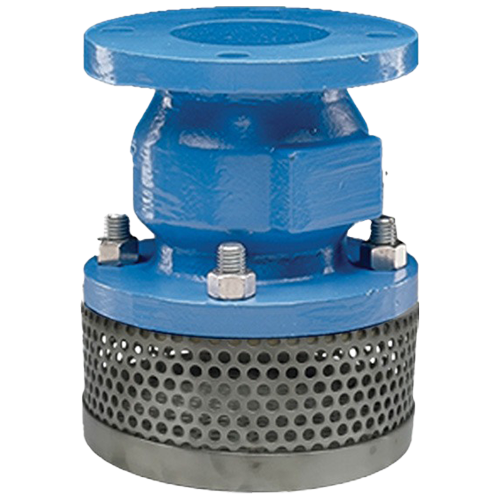

FOOT VALVE

...
...
PRODUCT DETAILS
Sizes 1/2" to 36"
Pressure Class Ratings Asme #150 to #300
End Connection Screwed, Flanged
Construction Types Spring Loaded, Disc Type, others upon request
Salient Features Easy Installation, Low Head Loss, High Capacity, Repalcable Seats etc.
Operator/Actuator Self Actuation
STANDARDS SPECIFICATIONS
Design & Manufacture ASME B16.34
Face To Face MFG Standard
End Connections ISO 7-1, BS 21, ASME B1.20.1, ASME B16.5 RF/FF, EN 1092
Testing ASME B16.34
Nace NACE MR0175/ISO 15156 and NACE MR0103/ISO17945
MATERIAL OF CONSTRUCTION
Body Cast Iron, SG Iron, Carbon & Low Carbon Steel, Stainless Steel, Nickel alloys, High Temp Alloys, Duplex Stainless Steel, Exotic Materials
Trim Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials
Seats Natural Rubber, Neoprene,Buna-N, Viton, EPDM, PTFE, NBR etc
Gaskets PTFE/RPTFE/Special filled PTFE/Graphite/Graphoil/Rubber
Fasteners ASTM A193 Gr.B7/A194 Gr.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H etc.,

Note : For Bigger sizes please contact PR-Fect Valves
