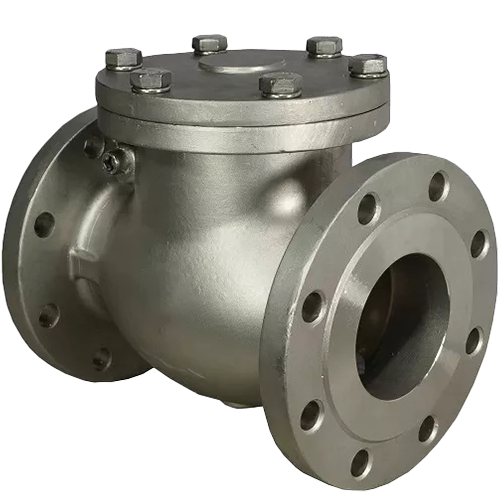

SWING CHECK VALVE

...
...
PRODUCT DETAILS
Sizes 2" to 16"
Pressure Class Ratings Asme #150 to #2500
End Connection Screwed, Socket Weld, Flanged, Butt-Weld
Construction Types Swing, Bolted Cover
Salient Features Pressure Seal, Fugitive Emissions, Metal Seats, Internal Hinge, Damper Arrangements, Jacketed etc.
STANDARDS SPECIFICATIONS
Design & Manufacture API 6D, ASME B16.34, BS 1868
Face To Face ASME B16.10, MFG Standard
End Connections ASME B16.11, ISO 7-1, BS 21 ASME B1.20.1, ASME B16.5/B16.47 RF/FF/RTJ ASME 16.25, EN 1092
Testing API6D, API 598, ASME B16.34
Nace NACE MR0175/ISO 15156 and NACE MR0103/ISO17945
MATERIAL OF CONSTRUCTION
Body /Top Cover Carbon & Low Carbon Steel, Stainless Steel, Nickel alloys, High Temp Alloys, Duplex Stainless Steel, Exotic Materials
Trim Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials
Seat Soft Seats, HF-Metal to Metal Seats, others upon request
Gaskets PTFE/RPTFE/Special filled PTFE/Graphite/Graphoil/Spiral Wounded
Fasteners ASTM A193 Gr.B7/A194 Gr.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H etc.,

Note : For Bigger sizes please contact PR-Fect Valves
