BALL VALVES
A ball valve is a widely used device in fluid control systems designed for regulating the flow of liquids or gases through a pipe. It operates by using a spherical ball with a hole through its center, which rotates within the valve body to allow or block flow. Ball valves are ideal for applications requiring quick shutoff or reliable isolation of flow. Ball valves provide excellent sealing capabilities and are particularly effective in situations where tight shutoff is essential.
Ball valves are a crucial component in many systems due to their reliability and efficiency, serving as an optimal solution for controlling flow in pipelines. Commonly found in industries such as water supply, oil and gas, chemical processes, and power generation, ball valves are essential for managing both small and large volumes of fluid securely.
PR-FECT VALVES manufactures ball valves in a wide range of sizes, materials, and pressure ratings, ensuring compatibility with diverse industrial applications and offering advanced technical features such as precision-machined components and corrosion-resistant coatings for enhanced performance and durability.
| SL. NO. | BALL VALVE TYPES |
| 1 | BALL VALVE |

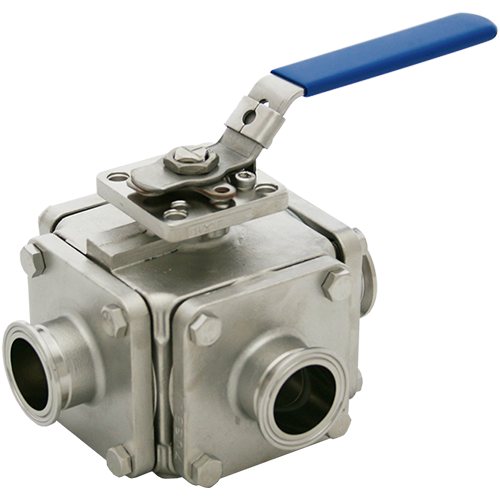

| 2 | MULTI-PORT BALL VALVE |
| 3 | ORBIT / RISING STEM BALL VALVE |

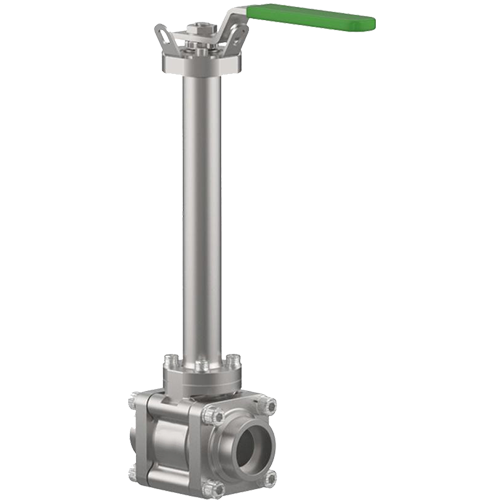

| 4 | CRYOGENIC BALL VALVE |
| 5 | BRONZE BALL VALVE |
| 6 | SEGMENTED BALL VALVE |

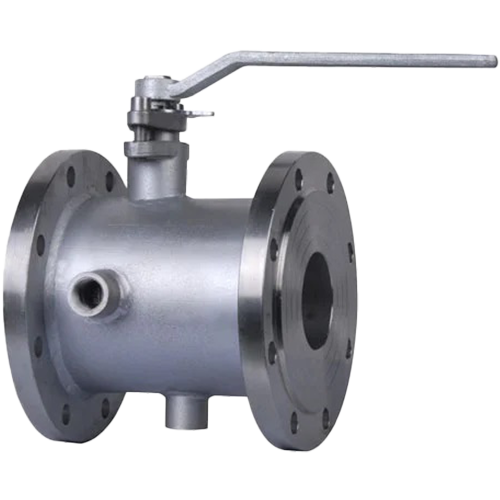

| 7 | JACKETED BALL VALVE |
| 8 | V-NOTCH BALL VALVE |
| 9 | DOUBLE BLOCK AND BLEED BALL VALVE |
| 10 | SINGLE BLOCK AND BLEED BALL VALVE |
| 11 | HIGH TEMPERATURE BALL VALVE |
| 12 | FABRICATED BALL VALVE |

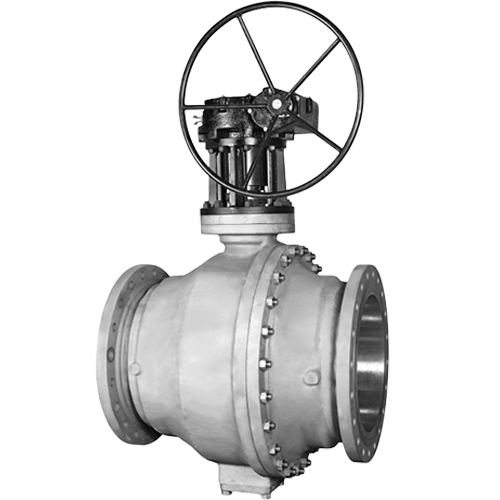

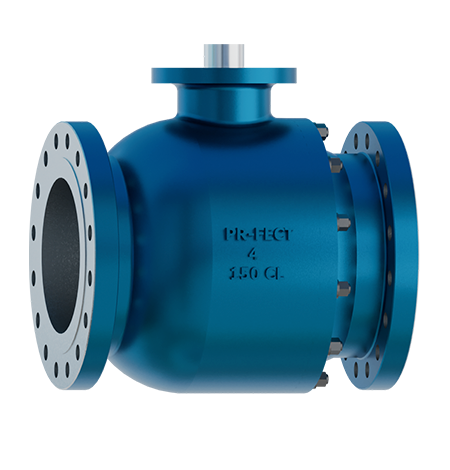

| 13 | TRUNNION / GUIDED BALL VALVES |
| 14 | EMERGENCY SHUTDOWN BALL VALVE |
| 15 | CONTROL BALL VALVE |
| 16 | PVC / CPVC BALL VALVE |
| 17 | HIGH PRESSURE BALL VALVE |
| 18 | SUBSEA BALL VALVE |
| 19 | EXTENSION SPINDLE BALL VALVE |
| PRODUCT DETAILS | |
| Sizes | 1/4" to 250" |
| Pressure Class Ratings | ASME #150 to #4500 |
| End Connection | Screwed, Socket Weld, Flanged, Butt-Weld |
| Construction Types | Single Piece, Two Piece & Three Piece Constructions |
| Port Options | Full Port & Regular Port |
| Salient Features | Fire-Safe Design, Cryogenic Configuration, Stem Extension, Cavity Pressure Relief mechanism, Antistatic feature, High Integrity Stem Sealing, Blowout-proof stem, Primary Metal and Secondary Soft Seat Design, Locking Arrangements |
| Operator / Actuator | Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised) |
| STANDARDS SPECIFICATIONS | |
| Design & Manufacture | API 6D, API 608, ASME B16.34, BS EN ISO 17292 |
| Face To Face | ASME B16.10, MFG Standard |
| End Connections | ASME B16.11, ISO 7-1, BS 21 ASME B1.20.1, ASME B16.5 RF/FF/RTJ ASME 16.25, EN 1092 |
| Testing | API 6D, API 598, ASME B16.34, BS EN 12266, ISO 5208 |
| Fire safe testing | ISO 10497/ API 607, API 6FA |
| Nace | NACE MR0175 / ISO 15156 and NACE MR0103 / ISO17945 |
| Fugitive emission | ISO 15848-1, API 641 |
| Leak tightness | ISO 5208, ANSI/FCI 70-2 |
| MATERIAL OF CONSTRUCTION | |
| Body / End Connector | Carbon & Low Carbon Steel, Stainless Steel, Nickel alloys, Aluminium Bronze, Duplex Stainless Steel, Exotic Materials |
| Trim | Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials |
| Seat | PTFE/ RPTFE/ Special filled PTFE/ PEEK/ Devlon®/ SS316 + ST |
| Stem Packing & Seals | PTFE/ RPTFE/ Special filled PTFE/Graphite/Graphoil |
| Gaskets | PTFE/ RPTFE/ Special filled PTFE/Graphite/Graphoil/Spiral Wounded |
| Stem Bearing | RPTFE/ Special filled PTFE/Graphite |
| Fasteners | ASTM A193 Gr.B7/A194 Gr.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H etc., |
Note : For Bigger sizes please contact PR-Fect Valves
