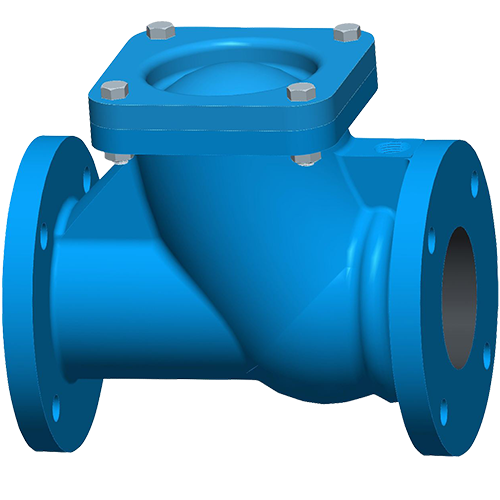

PRODUCT DETAILS | |
Sizes | 2" to 16" |
Pressure Class Ratings | Asme #150 to #600 |
End Connection | Screwed, Socket Weld, Flanged, Butt-Weld |

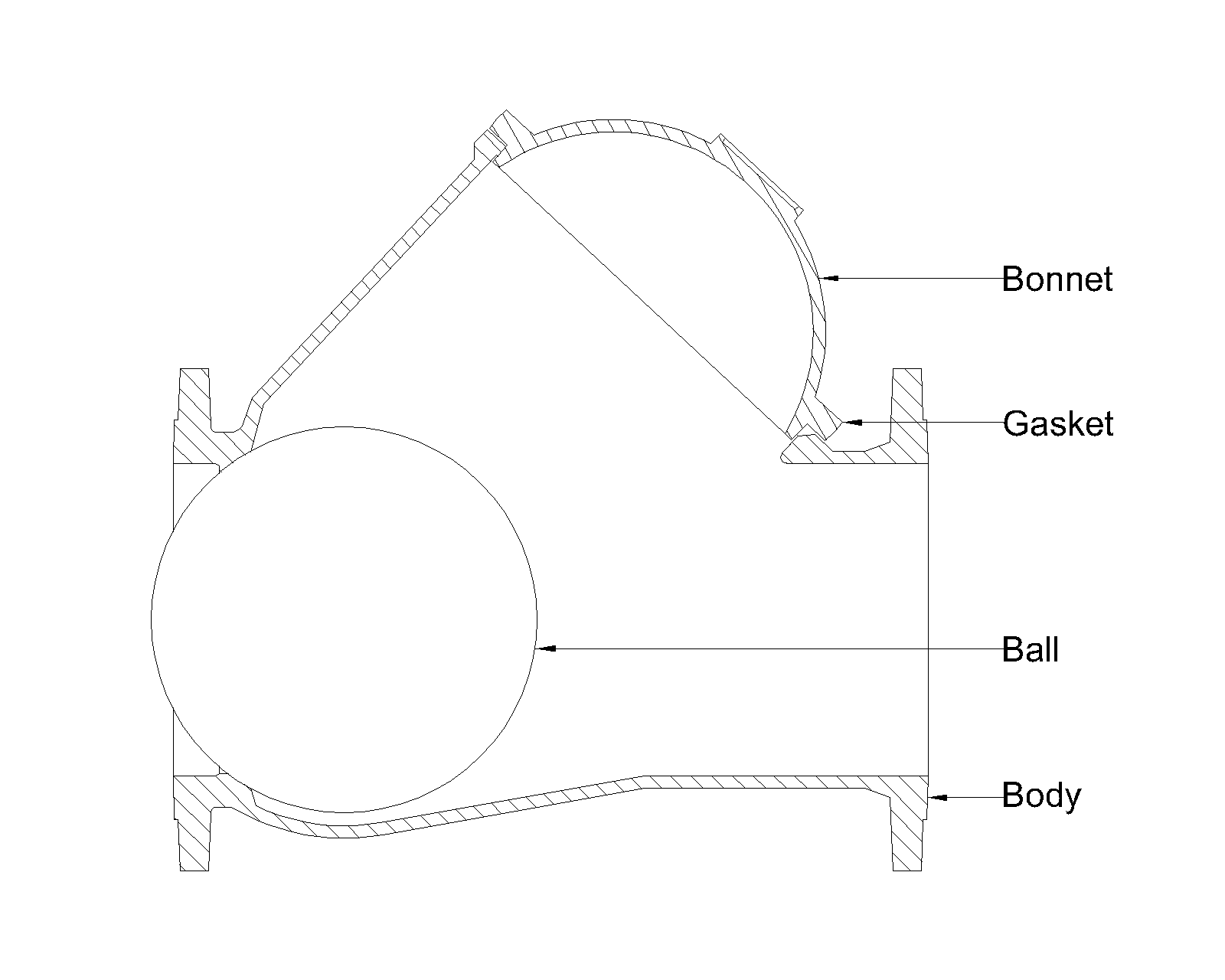

Construction Types | Ball , Bolted Cover, Straight & Y Pattern |
Salient Features | Fugitive Emissions, Internal seat etc. |
STANDARDS SPECIFICATIONS | |
Design & Manufacture | API 6D, ASME B16.34, BS 1868 |
Face To Face | ASME B16.10, MFG Standard |
End Connections | ASME B16.11, ISO 7-1, BS 21 ASME B1.20.1, ASME B16.5/B16.47 RF/FF/RTJ ASME 16.25, EN 1092 |
Testing | API6D, API 598, ASME B16.34 |
Nace | NACE MR0175 /ISO 15156 and NACE MR0103 /ISO17945 |
MATERIAL OF CONSTRUCTION | |
Body /Top Cover | Carbon & Low Carbon Steel, Stainless Steel, Nickel alloys, High Temp Alloys, Duplex Stainless Steel, Exotic Materials |
Ball | Rubber Lined on Metal Core, Polyurethane etc |
Seat | Soft Seats, others upon request |
Gaskets | PTFE/RPTFE/Special filled PTFE/Graphite/Graphoil/Spiral Wounded |
Fasteners | ASTM A193 Gr.B7/A194 Gr.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H etc., |
Note : For Bigger sizes please contact PR-Fect Valves
