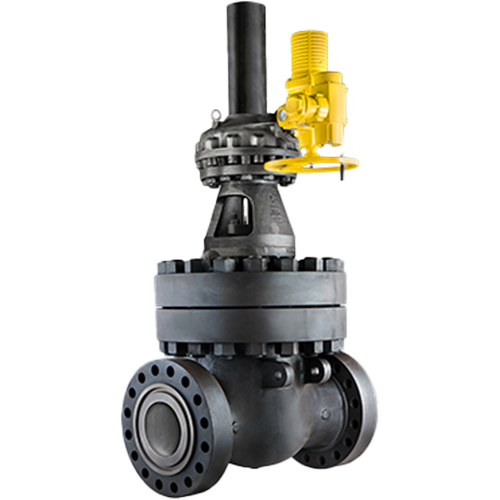

PRODUCT DETAILS
Sizes	2" to 60"
Pressure Class Ratings	Asme #150 to #4500
End Connection	Screwed, Socket Weld, Flanged,  Butt-Weld
Construction Types	O.S & Y. Rising Stem, Flexible Solid Wedge, Split wedge, others upon request
Salient Features	Pressure Seal, Bellow Seal, Fugitive Emissions, Metal Seats, Back Seating, Stem Extension, Bypass Arrangement, Equalizing Arrangement, Bypass and Equalizing Arrangement, Locking Arrangements etc.
Operator/ Actuator	Handwheel, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

STANDARDS SPECIFICATIONS
Design & Manufacture	API 600, API 603, ASME B16.34
Face To Face	ASME B16.10, MFG Standard
End Connections	ASME B16.11, ISO 7-1, BS 21 ASME B1.20.1, ASME B16.5/ B16.47 RF/ FF/ RTJ ASME 16.25, EN 1092
Testing	API 6D, API 598, ASME B16.34
Fire safe testing	ISO 10497/ API 607, API 6FA
Nace	NACE MR0175/ ISO 15156 and NACE MR0103/ ISO17945
Fugitive emission	ISO 15848-1, API 624

MATERIAL OF CONSTRUCTION
Body/ Bonnet/ Yoke	Carbon & Low Carbon Steel, Stainless Steel, Nickel alloys, High Temp Alloys, Duplex Stainless Steel, Exotic Materials
Trim	Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials
Seat	HF-Metal to Metal Seats, others upon request
Stem Packing & Seals	PTFE/ RPTFE/ Special filled PTFE/ Graphite/ Graphoil
Gaskets	PTFE/ RPTFE/ Special filled PTFE/ Graphite/ Graphoil/ Spiral Wounded
Fasteners	ASTM A193 Gr.B7/ A194 Gr.2H, B7M/ 2HM, B8/ 8, B8M/ 8M, L7/ 4, B16/ 2H etc.,

Note : For Bigger sizes please contact PR-Fect Valves
