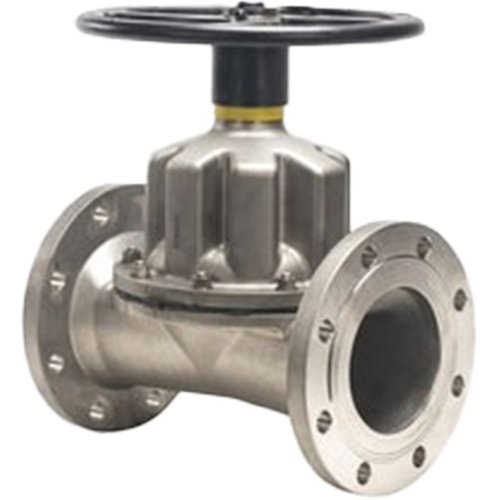

DIAPHRAGM VALVE
| PRODUCT DETAILS | |
| Sizes | 1/2" to 8" |
| Pressure Class Ratings | Asme #150, PN6, PN10 |
| End Connection | Flanged |
| Construction Types | Weir Type |
| Salient Features | Weir Design, No Packings, Body Lining, Locking Arrangements etc. |
| Operator/Actuator | Handwheel, others upon request |
| STANDARDS SPECIFICATIONS | |
| Design & Manufacture | BS 5156, ASME B16.34 |
| Face To Face | ASME B16.10, MFG Standard |
| End Connections | ASME B16.5, EN 1092 |
| Testing | BS 5156, ASME B16.34 |
| Nace | NACE MR0175/ISO 15156 and NACE MR0103/ISO17945 |
| MATERIAL OF CONSTRUCTION | |
| Body/Bonnet | Cast Iron, SG Iron, Carbon & Low Carbon Steel, Stainless Steel |
| Trim | Cast Iron, SG Iron, Carbon & Low Carbon Steel, Stainless Steel |
| Diaphragm | Natural Rubber, Neoprene, Buna-N, Viton, EPDM, PTFE, NBR etc |
| Fasteners | ASTM A193 Gr.B7/A194 Gr.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H etc., |
Note : For Bigger sizes please contact PR-Fect Valves
