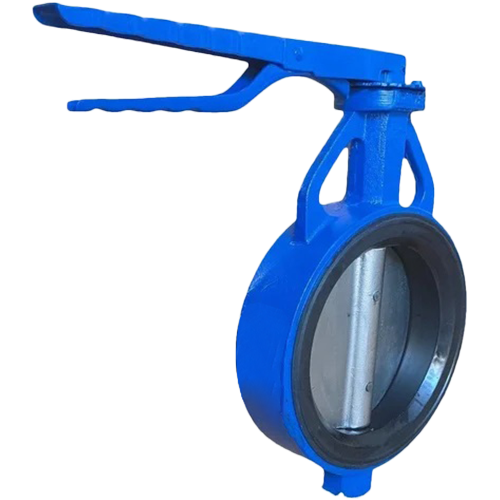

CENTRED DISC BUTTERFLY VALVE

...
...
PRODUCT DETAILS
Sizes 2" to 72"
Pressure Class Ratings Asme #150, PN6, PN10, PN20, PN25
End Connection Wafer, Lugged, Flanged
Construction Types Centric Disc
Salient Features One-piece blowout-proof Stem, Reliable Drive Operation, Low Torque,Assured Sealing, Integral Actuator Mounting, Stem Extension, Locking Arrangements etc.
Operator / Actuator Handwheel, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)
STANDARDS SPECIFICATIONS
Design & Manufacture EN 593 (BS 5155), API 609, MSS SP 67, ISO 5752
Face To Face API 609, MFG Standard
End Connections ASME B 16.1 Class 125, B 16.5 Class 150, EN 1092-2, BS 4504, BS 10 Table D & E
Testing EN 12266/API 598
Fire safe testing
Nace NACE MR0175/ISO 15156 and NACE MR0103/ISO17945
Fugitive emission
MATERIAL OF CONSTRUCTION
Body Cast Iron, SG Iron, Carbon & Low Carbon Steel, Stainless Steel, Nickel alloys, High Temp Alloys, Duplex Stainless Steel, Exotic Materials
Body Liner Nitrile, EPDM, Viton etc.
Disc Cast Iron, SG Iron, Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials
Bearing Acetal, PTFE, Phosphor Bronze
Stem Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials

Note : For Bigger sizes please contact PR-Fect Valves
