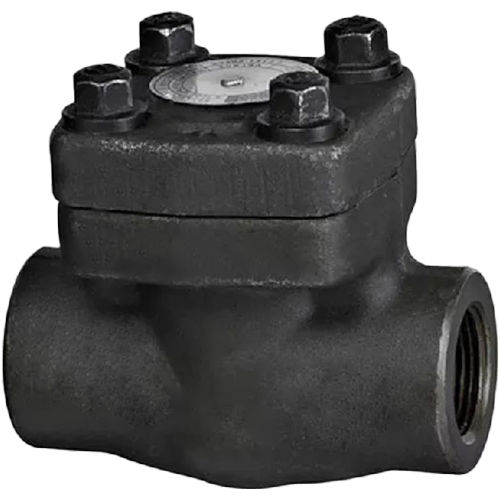

PRODUCT DETAILS | |
Sizes | 1/4" to 4" |
Pressure Class Ratings | Asme #150 to #4500 |
End Connection | Screwed, Socket Weld, Flanged, Butt-Weld |
Construction Types | Swing, Lift/Piston & Ball Types |
Salient Features | Fugitive Emissions, Metal Seats, Internal Hinge etc. |
STANDARDS SPECIFICATIONS | |
Design & Manufacture | API 602, ASME B16.34, BS 5352 |
Face To Face | ASME B16.10, MFG Standard |
End Connections | ASME B16.11, ISO 7-1, BS 21 ASME B1.20.1, ASME B16.5/B16.47 RF/FF/RTJ ASME 16.25, EN 1092 |
Testing | API 598, ASME B16.34 |
Nace | NACE MR0175/ISO 15156 and NACE MR0103/ISO17945 |
MATERIAL OF CONSTRUCTION | |
Body / Top Cover | Carbon & Low Carbon Steel, Stainless Steel, Nickel alloys, High Temp Alloys, Duplex Stainless Steel, Exotic Materials |
Trim | Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials |
Seat | HF-Metal to Metal Seats, others upon request |
Gaskets | PTFE/RPTFE/Special filled PTFE/Graphite/Graphoil/Spiral Wounded |
Fasteners | ASTM A193 Gr.B7/A194 Gr.2H, B7M/2HM, B8/8, B8M/ 8M, L7/4, B16/2H etc., |
Note : For Bigger sizes please contact PR-Fect Valves
