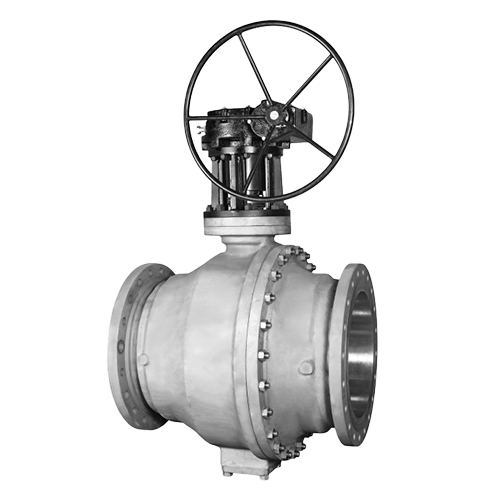

| PRODUCT DETAILS |
| SIZES |
2" to 48" |
| PRESSURE CLASS RATINGS |
ASME #150 to #4500 |
| END CONNECTION |
FLANGED, BUTT-WELD |
| CONSTRUCTION TYPES |
TWO PIECE & THREE PIECE CONSTRUCTIONS |
| PORT OPTIONS |
FULL PORT & REGULAR PORT |
| SALIENT FEATURES |
FIRE-SAFE DESIGN, CRYOGENIC CONFIGURATION, STEM EXTENSION, CAVITY PRESSURE RELIEF MECHANISM,
ANTISTATIC FEATURE,
HIGH INTEGRITY STEM SEALING, BLOWOUT-PROOF STEM, DBB
PRIMARY METAL AND SECONDARY SOFT SEAT DESIGN, LOCKING ARRANGEMENTS |
| OPERATOR / ACTUATOR |
LEVER, GEAR, ACTUATOR (PNEUMATIC, HYDRAULIC, ELECTRO-HYDRAULIC AND ELECTRIC MOTORISED) |
| STANDARDS SPECIFICATIONS |
| DESIGN & MANUFACTURE |
API 6D/ ISO 14313/ API 608 /API 6A / ASME B16.34 |
| FACE TO FACE |
ASME B16.10, MFG STANDARD |
| END CONNECTIONS |
ASME B16.5 RF/FF/RTJ, ASME 16.25, EN 1092 |
| TESTING |
API 6D, API 598, ASME B16.34, BS EN 12266, ISO 5208 |
| FIRE SAFE TESTING |
ISO 10497/ API 607, API 6FA |
| NACE |
NACE MR0175 / ISO 15156 AND NACE MR0103 / ISO17945 |
| FUGITIVE EMISSION |
ISO 15848-1, API 641 |
| LEAK TIGHTNESS |
ISO 5208, ANSI/FCI 70-2 |
| MATERIAL OF CONSTRUCTION |
| BODY / END CONNECTOR |
CARBON & LOW CARBON STEEL, STAINLESS STEEL, NICKEL ALLOYS,
ALUMINIUM BRONZE, DUPLEX STAINLESS STEEL, EXOTIC MATERIALS |
| TRIM |
STAINLESS STEEL, NICKEL ALLOYS, DUPLEX STAINLESS STEEL, EXOTIC MATERIALS |
| SEAT |
PTFE/ RPTFE/ SPECIAL FILLED PTFE/ PEEK/ DEVLON®/ SS316 + ST |
| STEM PACKING & SEALS |
PTFE/ RPTFE/ SPECIAL FILLED PTFE/GRAPHITE/GRAPHOIL |
| GASKETS |
PTFE/ RPTFE/ SPECIAL FILLED PTFE/GRAPHITE/GRAPHOIL/SPIRAL WOUNDED |
| STEM BEARING |
RPTFE/ SPECIAL FILLED PTFE/GRAPHITE |
| FASTENERS |
ASTM A193 GR.B7/A194 GR.2H, B7M/2HM, B8/8, B8M/8M, L7/4, B16/2H ETC., |
| SPRINGS |
INCONEL X-750, STAINLESS STEEL, CHROME STEEL |
