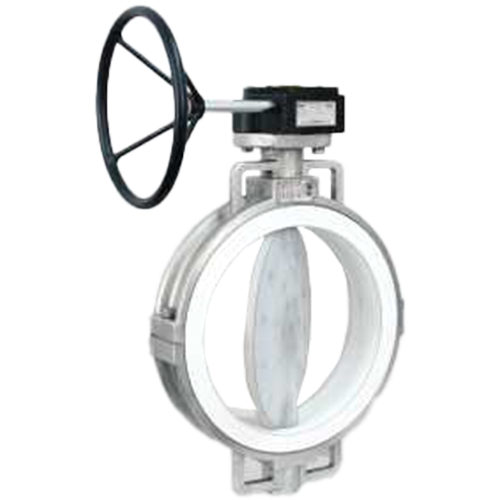

PRODUCT DETAILS | |
Sizes | 2" to 36" |
Pressure Class Ratings | Asme #150, PN6, PN10, PN20, PN25 |
End Connection | Wafer, Lugged, Flanged |
Construction Types | Centric Disc |
Salient Features | One-piece blowout-proof Stem, Reliable Drive Operation, Low Torque, Assured Sealing, Integral Actuator Mounting, Stem Extension, Locking Arrangements etc. |
Operator / Actuator | Handwheel, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised) |
STANDARDS SPECIFICATIONS | |
Design & Manufacture | EN 593 (BS 5155), API 609, MSS SP 67, ISO 5752 |
Face To Face | API 609, MFG Standard |
End Connections | ASME B 16.1 Class 125, B 16.5 Class 150, EN 1092-2, BS 4504, BS 10 Table D & E |
Testing | EN 12266/ API 598 |
Nace | NACE MR0175/ISO 15156 and NACE MR0103/ISO17945 |
MATERIAL OF CONSTRUCTION | |
Body | Cast Iron, SG Iron,Carbon & Low Carbon Steel, Stainless Steel, |
Body Liner | Lined with PFA/FEP/PVDF/PTFE/PP |
Disc | Cast Iron, SG Iron, Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials td> |
Bearing | Acetal, PTFE, Phosphor Bronze |
Stem | Stainless Steel, Nickel alloys, Duplex Stainless Steel, Exotic Materials |
Note : For Bigger sizes please contact PR-Fect Valves
